Product Summary

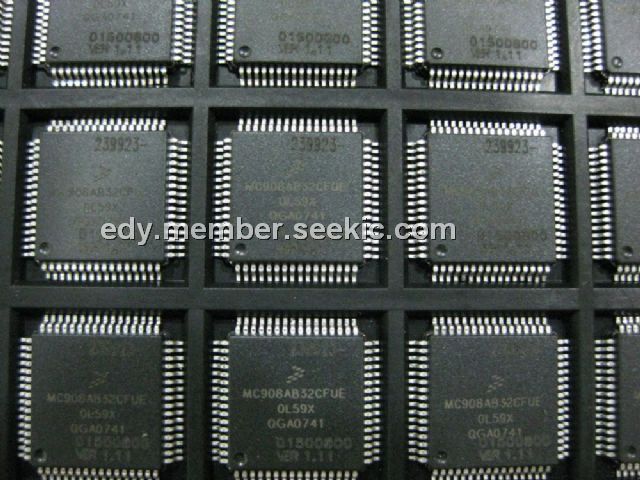

The MC908AB32CFUE is an 8-bit microcontroller unit (MCU) with embedded EEPROM for user data storage. The MC908AB32CFUE uses the enhanced M68HC08 central processor unit (CPU08) and is available with a variety of modules, memory sizes and types, and package types.
Parametrics
MC908AB32CFUE absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to + 6.0 V; (2)Input voltage, VIn: VSS – 0.3 to VDD + 0.3 V; (3)Maximum current per pin excluding VDD, VSS, and PTD0–PTD7, I: ± 15 mA; (4)Maximum current for pins PTD0–PTD7, IPTD0–PTD7: ± 25 mA; (5)Maximum current into VDD, Imvdd: 100 mA; (6)Maximum current out of VSS, Imvss: 100 mA; (7)Storage temperature, Tstg: –55 to +150℃.
Features
MC908AB32CFUE features: (1)High-performance M68HC08 architecture; (2)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (3)Memory map and pin functions compatible with MC68HC08AB32 and MC68HC08AB16; (4)8-MHz internal bus frequency; (5)32K-bytes user program FLASH memory with security1 feature; (6)512 bytes of on-chip EEPROM with security feature; (7)1K-byte of on-chip RAM; (8)Clock generator module (CGM); (9)Two 16-bit, 4-channel timer interface modules (TIMA and TIMB) with selectable input capture, output compare, and PWM capability on each channel; (10)Programmable interrupt timer (PIT); (11)Serial peripheral interface module (SPI) ; (12)Serial communications interface module (SCI) ; (13)8-channel. 8-bit analog-to-digital converter (ADC); (14)Low-power design (fully static with STOP and WAIT modes); (15)Master reset pin and power-on reset.

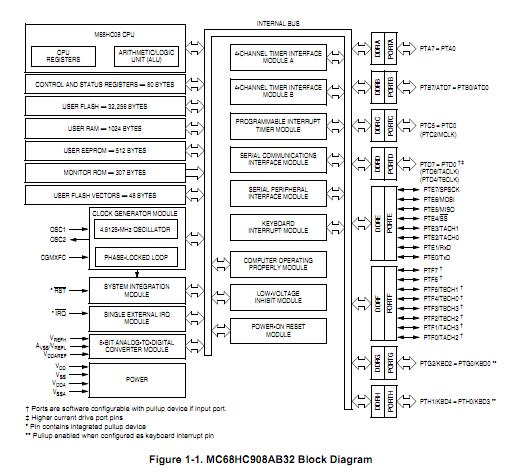

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC908AB32CFUE |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 32K FLASH & 512 EE |
Data Sheet |
|
|
||||||||||||
|
MC908AB32CFUER |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 32K FLASH & 512 EE |
Data Sheet |
|
|
||||||||||||
