Product Summary

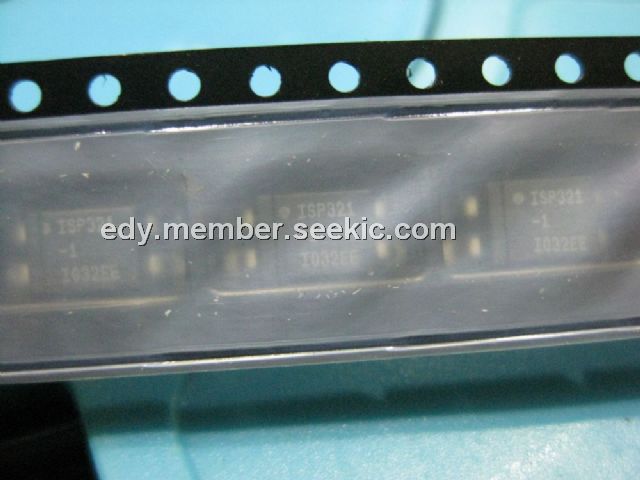

The ISP321-1 is an optically coupled isolator consisting of infrared light emitting diodes and NPN silicon photo transistors in a space efficient dual in line plastic package.
Parametrics
ISP321-1 absolute maximum ratings: (1)Storage Temperature: -55℃ to + 125℃; (2)Operating Temperature: -55℃ to + 100℃; (3)Lead Soldering Temperature (1/16 inch (1.6mm)from case for 10 secs): 260℃; (4)Forward Current: 50mA; (5)Reverse Voltage: 6V; (6)Power Dissipation: 70mW; (7)Collector-emitter Voltage BVCEO: 80V; (8)Emitter-collector Voltage BVECO: 6V; (9)Power Dissipation: 150mW; (10)Total Power Dissipation: 200mW.
Features
ISP321-1 features: (1)Options : 10mm lead spread - add G after part no., Surface mount - add SM after part no., Tape&ree- add SMT&R after part no.; (2)High Current Transfer Ratio ( 80 - 400% ); (3)High Isolation Voltage (5.3kVRMS ,7.5kVPK ); (4)High BVCEO ( 80Vmin ); (5)Alelectricaparameters 100% tested; (6)ExternaCreepage ≧7mm.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISP321-1X |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
ISP321-1-88XSM |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
ISP321-1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
