74LVQ4066DMTR

74LVQ4066DMTR, CMOS quad bilateral switch, SOP8, 2V to 5V, 2 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.08~0.10

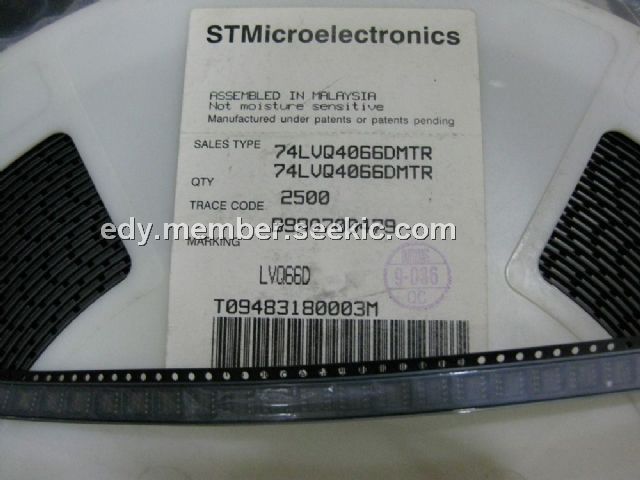

PartNumber:: 74LVQ4066DMTR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ben Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-25

From Other Seller

Part Number:74LVQ4066DMTR
US $0.08 - 0.10
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

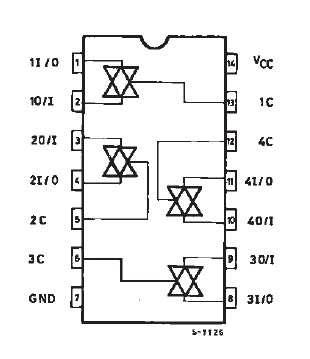

The 74LVQ4066DMTR is a low voltage CMOS QUAD BILATERAL SWITCH fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and low noise 3.3V applications. The 74LVQ4066DMTR has an ON-resistance which is greatly reduced in comparison with 74HC4066.

Parametrics

74LVQ4066DMTR absolute maximum ratings: (1)VCC, Supply Voltage: -0.5 to +7 V; (2)VI, DC Input Voltage: -0.5 to VCC + 0.5 V; (3)VO, DC Output Voltage: -0.5 to VCC + 0.5 V; (4)IIK, DC Input Diode Current: ± 20 mA; (5)IOK, DC Output Diode Current: ± 20 mA; (6)IO, DC Output Current: ± 50 mA; (7)ICC, or IGND DC VCC or Ground Current: ± 200 mA; (8)Tstg, Storage Temperature: -65 to +150℃; (9)TL, Lead Temperature (10 sec): 300℃.

Features

74LVQ4066DMTR features: (1)high speed: tPD = 0.4 ns (TYP.) at VCC = 3.3V; tPD = 0.1 ns (TYP.) at VCC =5V; (2)low power dissipation: ICC =2 mA (MAX.) at TA =25 oC; (3)low "ON” resistance: RON =20W atVCC = 3.3V, II/O 3 1mA; RON =12W atVCC =5V, II/O 3 1mA; (4)sinewave distortion: 0.04% at VCC = 3.3V, f = 1KHz; (5)operating voltage range: VCC(OPR) =2V to 5V; (6)pin and function compatible with 74 series 4066; (7)improvedlatch-up immunity.
