Product Summary
The DS75150MX is a dual monolithic line driver designed to satisfy the requirements of the standard interface between data terminal equipment and data communication equipment as defined by EIA Standard RS-232-C. A rate of 20,000 bits per second can be transmitted with a full 2500 pF load. Other applications of the DS75150MX are in data-transmission systems using relatively short single lines, in level translators, and for driving MOS devices. The logic input is compatible with most TTL and LS families. Operation is from −12V and +12V power supplies.
Parametrics
DS75150MX absolute maximum ratings: (1)Supply Voltage +VCC: 15V; (2)Supply Voltage −VCC: 15V; (3)Input Voltage: 15V; (4)Applied Output Voltage: +25V; (5)Storage Temperature Range: −65℃ to +150℃; (6)Maximum Power Dissipation at 25℃ SO Package: 655 mW; (7)Lead Temperature (Soldering, 4 sec.): 260℃.
Features
DS75150MX features: (1)Withstands sustained output short-circuit to any low impedance voltage betwee−25V and +25V; (2)2 μs max transitiotime through the −3V to +3V transitioregiounder full 2500 pF load; (3)Inputs compatible with most TTL and LS families; (4)Commostrobe input; (5)Inverting output; (6)Slew rate cabe controlled with aexternal capacitor at the output; (7)Standard supply voltages: ±12V.

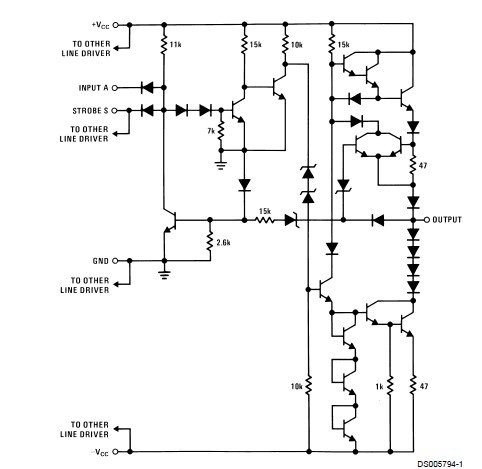

Diagrams
 |
