Product Summary

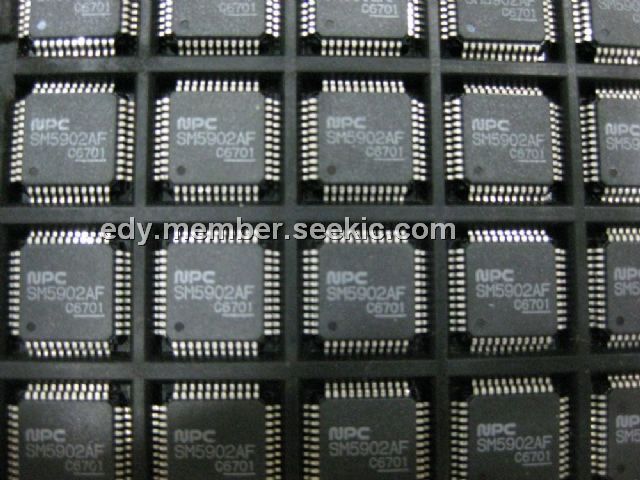

The SM5902AF is a compression and non compression type shock-proof memory controller LSI for compact disc players. The compression level can be set in 4 levels, and external memory can be selected from 4 options (1M, 4M, 4M´ 2, 16M). Digital attenuator, soft mute and related functions are also incorporated. The SM5902AF operates from a 2.4 to 5.5 V wide supply voltage range.
Parametrics
SM5902AF absolute maximum ratings: (1)Supply voltage, VDD: - 0.3 to 7.0 V; (2)Input voltage, VI: VSS - 0.3 to VDD + 0.3 V; (3)Storage temperature, TSTG: - 55 to 125℃; (4)Power dissipation, PD: 350 mW; (5)Soldering temperature, TSLD: 255℃; (6)Soldering time, tSLD: 10 sec.
Features
SM5902AF features: (1)2-channel processing; (2)Serial data input; (3)System clock input: 384fs (16.9344 MHz); (4)Shock-proof memory controller; (5)Compression mode selectable; (6)Microcontroller interface; (7)Extension I/O; (8)+2.4 to +5.5 V wide operating voltage range; (9)Schmitt inputs; (10)Reset signal noise elimination; (11)Digital audio interface (DIT); (12)44-pin QFP package (0.8 mm pin pitch).
Diagrams
 |
