74VHC125MTCX

74VHC125MTCX, Quad Buffer, TSSOP14, 5V, 4 μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.08~0.10

PartNumber:: 74VHC125MTCX

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSSOP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ben Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-25

From Other Seller

Part Number:74VHC125MTCX
US $0.08 - 0.10
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

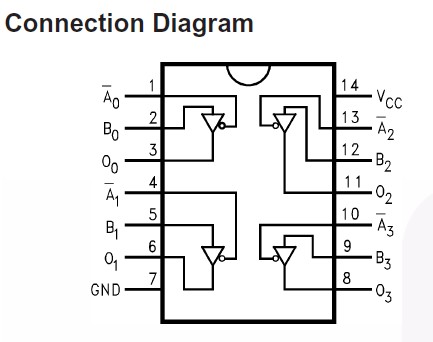

The 74VHC125MTCX Quad Buffer contains four independent non-inverting buffers with 3-STATE outputs. It is an advanced highspeed CMOS device fabricated with silicon gate CMOS technology and achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.

Parametrics

74VHC125MTCX absolute maximum ratings: (1)VCC, Supply Voltage: –0.5V to +7.0V; (2)VIN, DC Input Voltage: –0.5V to +7.0V; (3)VOUT, DC Output Voltage: –0.5V to VCC+ 0.5V; (4)IIK, Input Diode Current: –20mA; (5)IOK, Output Diode Current: ±20mA; (6)IOUT, DC Output Current: ±25mA; (7)ICC, DC VCC / GND Current: ±50mA; (8)TSTG, Storage Temperature: –65°C to +150℃; (9)TL, Lead Temperature (Soldering, 10 seconds): 260℃.

Features

74VHC125MTCX features: (1)High Speed: tPD=3.8ns (Typ.) at VCC=5V; (2)Lower power dissipation: ICC=4 μA (Max.) at TA=25°C; (3)High noise immunity: VNIH=VNIL=28% VCC (Min.); (4)Power down protection is provided on all inputs; (5)Low noise: VOLP=0.8V (Max.); (6)Pin and function compatible with 74HC125.
