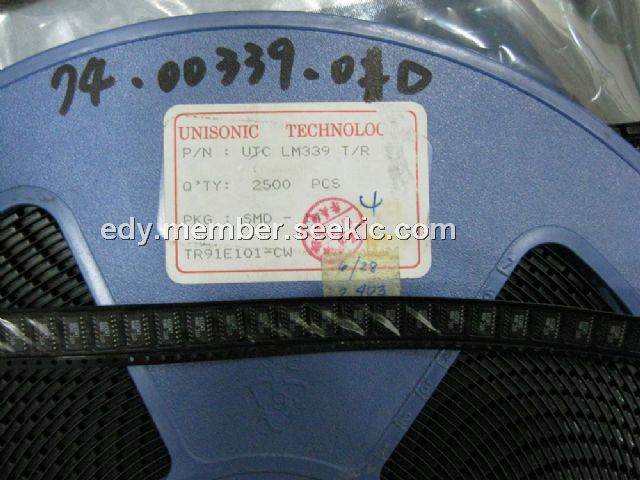

LM339T/R

LM339T/R, quad comparator, SMD14, 0.8 mA, 1050 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.09~0.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.09~0.11

PartNumber:: LM339T/R

Brand:: Unisonic Technologies - UTC | Pack: SMD | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ben Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-25

From Other Seller

Part Number:LM339T/R
US $0.09 - 0.11
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM339T/R is a low power low offset voltage quad comparator. The LM339T/R consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV max for all four comparators. The LM339T/R was designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The comparator LM339T/R also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.

Parametrics

LM339T/R absolute maximum ratings: (1)Power Dissipation Molded DIP: 1050 mW; (2)Cavity DIP: 1190 mW; (3)Small Outline Package: 760 mW; (4)Output Short-Circuit to GND: Continuous Continuous; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature: 260℃; (7)Operating Temperature Range: -40℃ to +85℃; (8)Dual-In-Line Package Soldering: 260℃; (9)Small Outline Package Vapor Phase (60 seconds): 215℃; (10)Infrared (15 seconds): 220℃; (11)ESD rating (1.5 kΩ in series with 100 pF): 600V.

Features

LM339T/R features: (1)Wide supply voltage range; (2)Very low supply current drai(0.8 mA) — independent of supply voltage; (3)Low input biasing current: 25 nA; (4)Low input offset current: ±5 nA; (5)Offset voltage: ±3 mV; (6)Input common-mode voltage range includes GND; (7)Differential input voltage range equal to the power supply voltage; (8)Low output saturatiovoltage: 250 mV at 4 mA; (9)Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems.
