Product Summary
The PQ015EH01ZPH is a Low Voltage Operation, Low Power-Loss Voltage Regulator. The PQ015EH01ZPH is ideal for: (1)Peripheral equipment of personal computers; (2)Power supplies for various electronic equipment such as DVD player or STB.
Parametrics
PQ015EH01ZPH absolute maximum ratings: (1)Input voltage: 10V; (2)Output control voltage: 10V; (3)Output current: 1A; (4)Power dissipation: 35W; (5)Junction temperature: 150; (6)Operating temperature: -40 to +85℃; (7)Storage temperature: -40 to +150℃; (8)Soldering temperature: 260℃(10s).
Features
PQ015EH01ZPH features: (1)Low voltage operation (Minimum operating voltage: 2.35V); (2)Large output current type (IO: 1A); (3)Low dissipation current (Dissipation current at no load: MAX. 2mA; (4)Output OFF-state dissipation current: MAX.5μA); (5)Low power-loss; (6)Built-in overcurrent and overheat protection functions; (7)TO-263 package; (8)RoHS directive compliant.

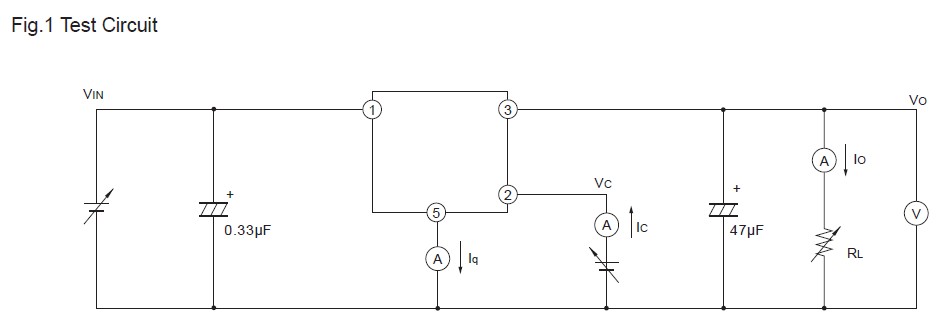

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

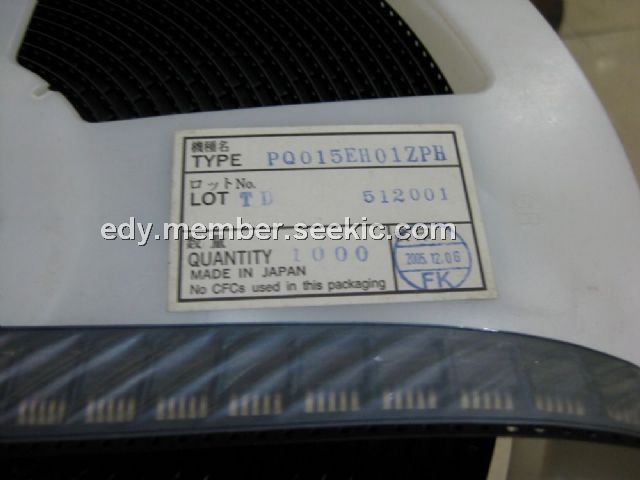

 PQ015EH01ZPH |
Sharp Microelectronics |
Low Dropout (LDO) Regulators LDO 1.5V 1A |
Data Sheet |
|
|
||||||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
 |
PQ010FZ01ZZ |
|
IC REG LDO 1V 1A SC-63 |
Data Sheet |
|
|
||||||||||||||||||||||
 |
PQ010FZ01ZZH |
Sharp Microelectronics |
Linear Regulators - Standard LDO 1.0V 1A Sleeve |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
PQ010FZ5MZPH |
Sharp Microelectronics |
Linear Regulators - Standard LDO 1.0V 0.5A |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
PQ010FZ5MZZH |
Sharp Microelectronics |
Linear Regulators - Standard LDO 1.0V 0.5A Sleeve |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
|
PQ010GN01ZPH |
Sharp Microelectronics |
Low Dropout (LDO) Regulators LDO 1.0V 1A |
Data Sheet |
|
|
||||||||||||||||||||||
|
PQ010GN01ZZH |
Sharp Microelectronics |
Low Dropout (LDO) Regulators LDO 1.0V 1A Sleeve |
Data Sheet |
|
|
||||||||||||||||||||||
