Product Summary
The 74LVX374MX is a high-speed, low-power octal D-type flipflop featuring separate D-type inputs for each flip-flop and 3-STATE outputs for bus-oriented applications. A buffered Clock (CP) and Output Enable (OE) of 74LVX374MX are common to all flipflops. The inputs tolerate up to 7V allowing interface of 5V systems to 3V systems.
Parametrics
74LVX374MX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Diode Current (IIK), VI -0.5V: -20 mA; (3)DC Input Voltage (VI): -0.5V to 7V; (4)DC Output Diode Current (IOK): VO=-0.5V: -20 mA; VO=VCC + 0.5V: +20 mA; (5)DC Output Voltage (VO): -0.5V to VCC + 0.5V; (6)DC Output Source or Sink Current (IO): ±25 mA; (7)DC VCC or Ground Current (ICC or IGND): ±75 mA; (8)Storage Temperature (TSTG): -65℃ to +150℃; (9)Power Dissipation: 180mW.
Features
74LVX374MX features: (1)Input voltage translation from 5V to 3V; (2)Ideal for low power/low noise 3.3V applications; (3)Guaranteed simultaneous switching noise level and dynamic threshold performance.

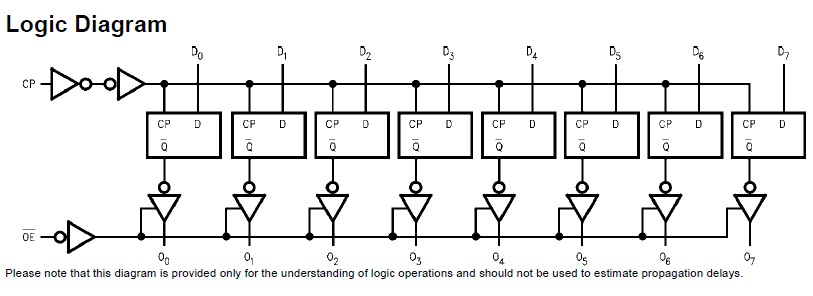

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

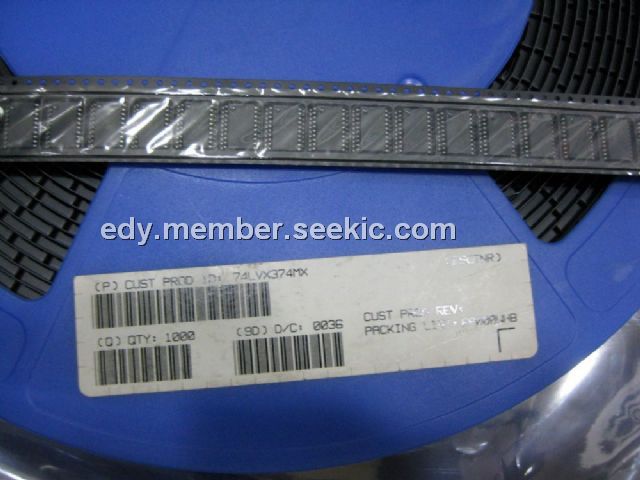

 74LVX374MX |
Fairchild Semiconductor |
Flip Flops Oct D-Type Flip-Flop |
Data Sheet |
|
|
||||||||||||
