Product Summary

The TA8192F is a power driver IC developed for CD players. It controls the focus/tracking coil of a 3-beam pickup head, the disc motor and feed motor.

Parametrics

TA8192F absolute maximum ratings: (1)Power Supply Voltage, VCC: 14V; (2)Output Current, IO (Typ.): 0.5A; (3)Power Dissipation, PD: No Heat Sink: 1W; Heat Sink: 2W; (4)Operating Temperature, Topr: -25 to 75℃; (5)Storage Temperature, Tstg: -55 to 150℃.

Features

TA8192F features: (1)BTL power drivers for 2 channels; (2)Circuits can reduce external components without utilizing a bootstrap technique; (3)High output voltage; (4)High output current: lo (Typ.) = 0.5A; (5)Wide operating power supply voltage range: Vcc = 4 to 12V; (6)Gain switch / output off (VR fixed output) are possible; Gain selection: 2, 4, 6 times; (7)Built-in thermal shutdown circuit; (8)20 pin power flat package.

Diagrams

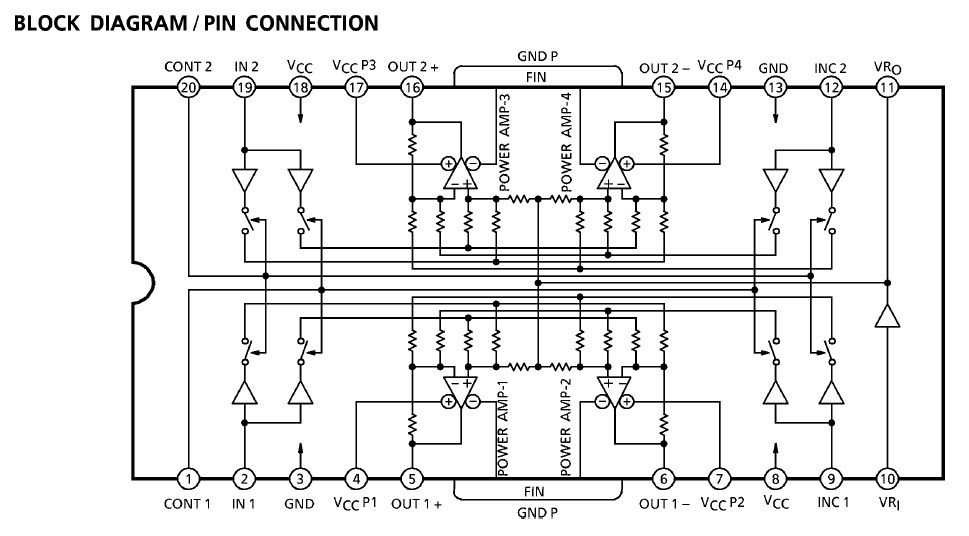

TA8192F circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TA8192F
TA8192F
Other

Data Sheet
Negotiable
