Product Summary

The P3100SCLRP is a Protection Thyristor designed to protect baseband equipment such as modems, line cards, CPE and DSL from damaging overvoltage transients. The P3100SCLRP provides a surface mount solution that enables equipment to comply with global regulatory standards.

Parametrics

P3100SCLRP absolute maximum ratings: (1)Pre Heat, Temperature Min (Ts(min): 150℃; Temperature Max (Ts(max): 200℃; Time (Min to Max) (ts): 60-180 secs; (2)Average ramp up rate (Liquidus Temp (TL) to peak): 3℃/sec. Max; (3)TS(max) to TL - Ramp-up Rate: 3℃/sec. Max; (4)Reflow, Temperature (TL) (Liquidus): 217℃; Temperature (tL): 60-150 secs; (5)Peak Temp (TP): 260(+0/-5)℃; (6)Time within 5℃ of actual Peak Temp (tp): 30 secs. Max; (7)Ramp-down Rate: 6℃/sec. Max; (8)Time 25℃ to Peak Temp (TP): 8 min. Max; (9)Do not exceed: 260℃.

Features

P3100SCLRP features: (1)Low voltage overshoot; (2)Low on-state voltage; (3)Does not degrade with use; (4)Fails short circuit when surged in excess of ratings; (5)Low Capacitance.

Diagrams

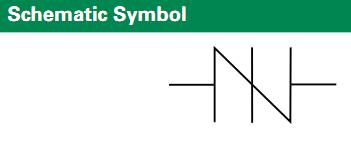

P3100SCLRP pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

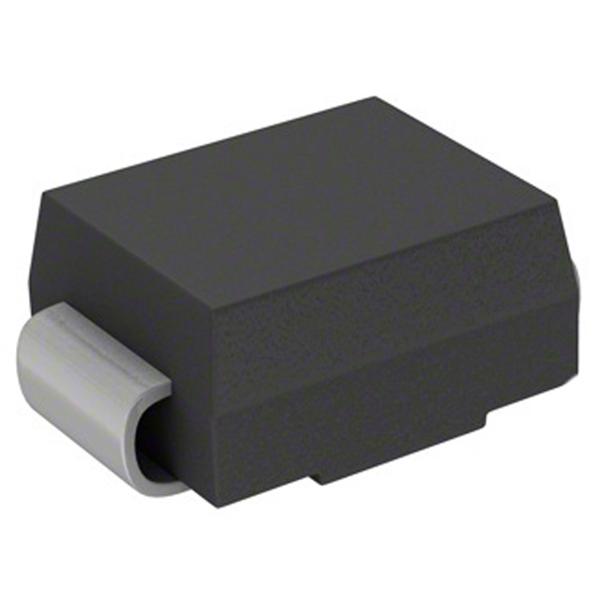

P3100SCLRP
P3100SCLRP
Littelfuse
Sidacs 500A 275V
Data Sheet
0-1: $0.77
1-10: $0.65
10-50: $0.62
50-100: $0.59
