Product Summary
The M65830AP is a CMOS IC developed to produce surround effects on TV sets and video disc players.Among the series, the M65830AP has the highest degree of freedom in the selection of delay time,so it permits fine adjustments when mounted on a set.
Parametrics
M65830AP absolute maximum ratings: (1)Vcc, Supply voltage: 6.5V; (2)Icc, Circuit current: 100 mA; (3)Pd, Power dissipation: 1W; (4)Topr, Operating temperature: -20 to +75℃; (5)Tstg, Storage temperature: -40 to +125℃.
Features
M65830AP features: (1)Selection of delay time in a range between 0.5msec and 32.0msec in 64 increments of 0.5msec; (2)Selection of delay time is controlled by serial data; (3)Built-in A-D, D-A converters,input/output low-pass filter, and 16K bit memory; (4)High sound quality is assured by simple system construction,due to A-D, D-A converters with ADM (Adaptive Delta Modulation) system; Output noise voltage: -95dBV (typ); Total harmonic distortion: 0.2% (typ).

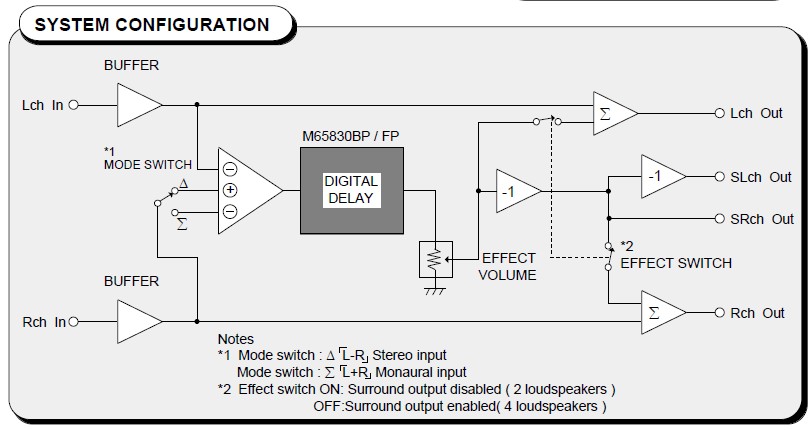

Diagrams
 |
